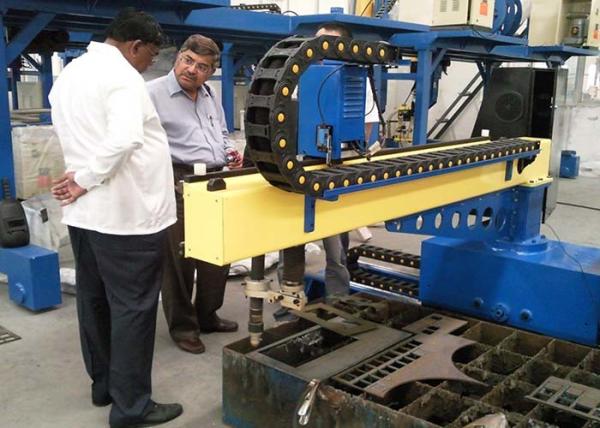

Cantilever CNC Steel Cutting Machine Thermadyne Auto Cut200 Plasma
Source
High performance and high efficiency CNC cutting machine.
Cantilever structural design, good rididity, and light weight.
Possessing all functions of gantry NC, and convenient in operation.
Adopting servo motor and bilateral drive, with stable running and
high cutting quality. Such main parts as servo motor, Planetary
reducer, and electromagnetic values are imported.
Application Scope and Material:
CNC Plasma Cutting Machine is automatic and high efficiency cutting
equipment. CNC Plasma Cutting Machine is widely used in all kinds
of carbon materials cutting, mild steel materials cutting and
nonferrous metal precision sheet metal cutting.
Thus is widely applied in industries such as automobile,
shipbuilding, machine tools, pressure vessels, engineering
machinery, mining machinery,electric power, building bridges, steel
Industries .
Machine Structure:
 | Effective cutting width: 1500mm~2500mm Effective cutting length: 3000mm~6000mm Linear rail adopted to assure high cutting efficiency |
 | USA MicroEDGE system USA EDGEII system China FL-2500 system China Adtech HC6500 system |
 | Japan Pansonic Servo Motors |
 | Japan Shimpo Reducer |
 | Plasma cutting torch |
Features:
1. Cantilever structure, which is easy for moving and packing. The
X axis adopts liner rail to ensure running speed and accuracy.
2. Cutting head with cooling system can quickly cool surface of
material to avoid burr and residue.
3. Power supply adjusts current according to different thickness of
the material to ensure cutting materials without burn.
4. Processed Materials of small and neat kerf, without secondary
processing.
5. Advanced control system, large capacity storing function,
convenient to read and process.
6. Applicable industry: advertising industry, arts and handicrafts
cutting, metal plate cutting.
Technical Parameters:
| Model | CNC3-1500 |
| Effective cutting width | 1500mm |
| Effective cutting length | 3000-6000mm |
| Cutting thickness | Flame: 6-150mm; Plasma determined by selected cutting power |
| Cutting speed | 50-1000mm/min |
| Returning speed | 50-3000mm/min |
| Cutting roughness | Ra12.5mm |
| Cutting precision | ±0.5mm/m |

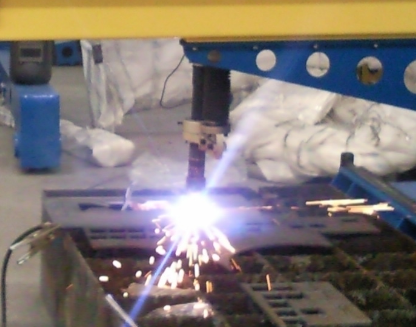

Cutting Samples:
Our Service:
Company is engaged in the plasma cutting production and welding
products for many years. With advanced production equipment, strong
technical force, complete quality management system, focus on all
kinds of plasma cutting and welding machine.
1. All parts are made of brand products, and the quality is stable
and reliable.
2. Standard packaging, separate containers to ensure transportation
safety.
3. Own factory, prompt delivery, product quality guaranteed.
4. Staff experience is very rich, good after-sales service effect.
5. All equipment through international certification,
cost-effective.
