    Tube Plate Special CNC Laser Cutting Machine 500W High Speed 1500X3000mm

    Ask Lasest Price
    Brand Name : Metalwork
    Model Number : FL-3015-500W-P
    Certification : CE, ISO, CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Tube Plate Special CNC Laser Cutting Machine 500W High Speed 1500X3000mm

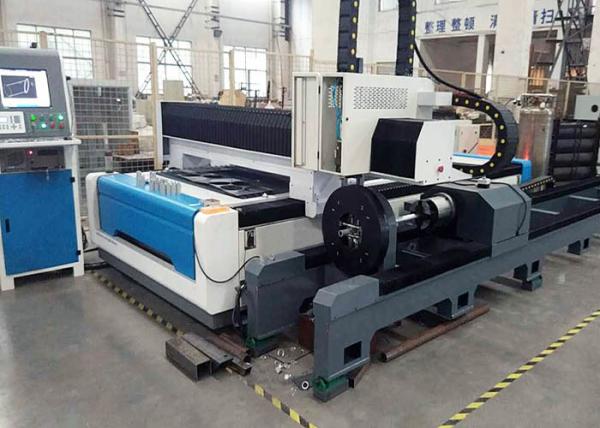

    FL-3015-500W-P Tube and Plate Fiber Laser Cutting Machine


    FL series fiber laser cutting machine integrates optical, mechanical and electrical in one,which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed,high accurate,high efficiently cutting. Its products have smooth edge,small kerf width and little heat effect.Cut the shape of Circle, Triangle, Octagonal etc. on metal sheet or round/square/rectangular tube. The machine working area can be made as customer requirements and now the laser power can be installed 300w 500w 1Kw,2Kw (That will be decided by the customer processing material thickness)I think there must be one model suitable your requirements.


    Characteristics/Advantage of our fiber laser cutting machine:


    1. Stability and reliability of light path system and control system.

    2. Focused laser beam ensure that slim cutting kerf is only 0.15-0.2mm wide for perfect cutting effect.


    3. Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.


    4. Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and

    excellent cutting edge with little thermal deformation,smooth and aesthetic appearance.


    5. German high performance reducer,gear and rack;Taiwan Hi-win guide and ball screw.

    Almost maintenance-free because without reflector,there is no need to adjust optical path.


    6. Specially used for cutting 0.5-12mm carbon steel,0.5-6mm stainless steel,galvanized steel,electrolytic zinc-coated steel sheet,silicon steel and other kinds of thin metal sheets.


    Main Components:



    Technical Parameters:


    ModelFL-3015-500W
    Laser wave length1070nm
    Max laser power500W(CW)
    Cutting Area3000mmX1500mm
    X axis stroke3000m
    Y axis stroke1500m
    X,Y axis positioning precision±0.05mm
    X,Y,Z axis repeat positioning precision±0.03mm
    X,Y single axis max no-duty moving speed20min
    X/Y axis max interaction speed40min
    X/Y max axial acceleration1.0G
    CNC systemShanghai CypCUT system
    Max loading weight of working table500KG
    Phases3
    Rated voltage380V
    Frequency50Hz
    Protection class of main powerIP54
    Weight of whole machine2250KG
    Machine installed capacity6.5KVA
    Suitable round tube diameter20-100mm
    Suitable tube length3000mm

    Cutting Samples:
