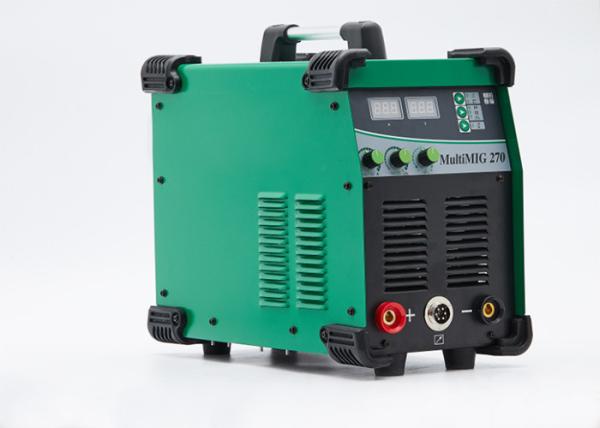

270A Digital Inverter IGBT CO2 Gas Shielded MIG / MAG Welding
Machine
Features:
1. Machine has manual welding, CO2 welding and continuous spot
welding functions.
2. With functions of current and voltage pre-setup functions,
accurate and perceptual intuition.
3. Excellent and quick wire feeding spot welding.
4. Easy operation interface with professional icons, which is easy
for operation.
5. Flashback time and slowly wire feeding speed, etc. functions can
be adjusted.
6. The inductance regulation is obvious, the excellent welding
experience for users.
7. Adopt advanced inverter technology, use import IGBT components, stable and smooth arc by constant current
characteristics.
8. There are many kinds of protection functions, the working
performance of the welder is steady and reliable, welding line is
beautiful.
9. Suitable for welding carbon steel and galvanized sheet.
10. Widely apply to welding applications such as: outdoor installation
maintenance, metal component, metal furniture, kitchen utensils,
containers and vehicles service and so on.
Technical Parameters:
| Model | MultiMIG270 |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 15 |
| Output Current Range (A) | 50-270 |
| Rated Output Voltage (V) | 16.5-27.5 |
| Steel Thickness(mm) | 0.6-7 |
| Electrode Diameter(mm) | 0.8-1 |
| Diameter of the Wire Board (mm) | 270 |
| Wire Feed Speed | 3-25S |
| Pre-Flow | 0-2S |
| Power Factor | 0.93 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 510*270*445 |
| Weight(KG) | 22 |
| Base Metal: | Carbon Steel, Low-alloy Steel, galvanized sheet |
| Welding | CO2/MIG/MMA |
| Standard Accessories | 1.Torch MIG15 3M |
| 2.Earth Clamp Wire 16MM2 |
| 3.Introduction Book |
| 4.Hose Clamp*2 |
| 5.Φ5 hexagon wrench |
| 6.Quick Plug 35-50 |
Main Market:
North America, South America , Southeast Asia, Middle East, Africa
Supply:
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3. Technical Support.
4. CE and CCC certificate
Strict Quality Control:
1.Our quality starts from the elemets. All parts are full
new,refusing the used one .Our machine mainboard is made by ourself
all the parts was in strictly controling.
2.Our quality controling systems are stopping the defect before
packing; So we arrange at least 5 QC stations, In an assembling
line; then every tiny part in the charge of one worker, even every
screws should be marked.
3.The scientific production management 6S , prevent the mistakes by
human being at the upper limits.
4. Our products are strictly tested 100% before delivery, and
approved by CE. And our products are able to meet or exceed some of
the industry's most rigid standards. We can ensure you will be
satisfied with both performance and durability.
