Roller Conveyor for H beam Heavy Duty Production Line for Transfoming H beam

The roller conveyor is one of the most important parts of H-beam production line. It joint the assembly machine , 90 degree turning frame, cantilever welding machine, conveying machine, 60 degree turning frame,180 degree overturning frame, straightening machine, which reducing using the crane and improve the production efficiency.

Roller conveyor usually put by one piece driving roller and one piece idler roller, from the side of assembly machine roller conveyor to the front of straightening machine roller conveyor ( lay in one line). 90 degree turning frame, conveying machine, 180 degree overturning frame is put in the free distance. .For 15m beam, the total length of roller conveyor is about 75m, ten pieces of driving roller and ten pieces of idler roller. If the beam more than 15m (18m,20m or more), we will redesign the total length of roller conveyor.

Technical Parameters:

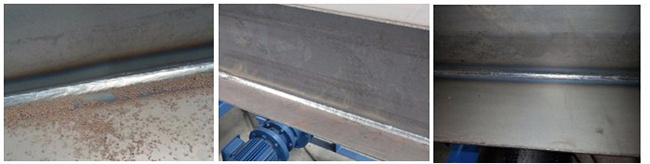

Finished products:

First class welding process, perfect finished product show.

Questions:

1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m², with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.

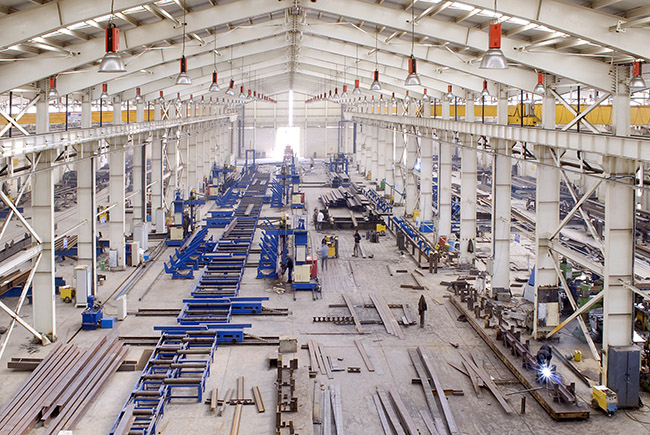

Metalwork Machinery (Wuxi) Co., LTd., was established in 2006, specializing in cutting and welding automation manufacture, sales, and services with more than 10 years experience.

Our products ranges: CNC flame and plasma cutting machine, CNC fiber laser cutting machine, arc welding machine, automatic resistance welding machine, automatic seam welding machine, H beam and box beam production line, robotics welding and cutting stations, etc.  We also can produce the customized machine according to customer's workpiece.

Moreover, we are specialized in "whole solution" of production lines for our customers, we not only supply you the individual equipment, but also delivery a solution for your project. This will bring you more values from us.

With regard to the welding equipment industry, advanced technical well-know in design and production activities and long term experience, we provide important technology and innovations for tank, pressure vessel, boiler,ship building, nuclear power, electric power station, manufacturing processes. We not only sell the equipment, but also delivery value to customers.

Service is our specialty, after long time cooperation, you will satisfy more with us.

If you have any queries, please do not hesitate to contact us by phone or E-mail. We will revert to your questions, within 24 hours after your requests.

Nearby locations:
PVG Pudong airport, 178Km, by train: 50 min
Wuxi Airport: 35Km, by car: 50 min
Peking Airport: 1100Km to Wuxi, 2hrs by plane
Shanghai Port: 145Km, 2hrs by truck
Wuxi Railway Station: 25Km, 40 min by car
