    Automatic H / I Beam Spot Welding Assembly Machine 1200~1800mm Web Height

    Ask Lasest Price
    Brand Name : Metalwork
    Model Number : HZL-1200 / 1500 / 1800
    Certification : CE, ISO, CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

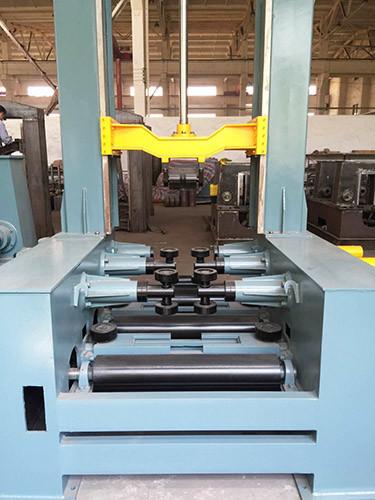

    Automatic H / I Beam Spot Welding Assembly Machine 1200~1800mm Web Height


    Automatic H / I Beam Spot Welding Assembly Machine


    Performance:


    The vertical assembly machine which the flange, web fastening and calibrating, positioning, and auto spot welding equipped, all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products, with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality of welding.

    • Machine body: main frame upper gantry assemble flange-web in-phase clamping aligning unit driving reducer
    • Input conveyor: 2600 mm x 3 sets
    • Out conveyor : 2600 mm x 3 sets
    • Hydraulic system: oil pump station high pressure hose hydraulic cylinders etc
    • Auto-tack welding system: 2sets of KN-350 Co2 welding machine auto welding unit.
    • Spare parts:3 buttons 3 pieces of 4A 2A fuses each

    Technique document (send out to clientele after bargain go into effect ):


    a, Operating manual(including electrical diagram)

    b, Delivery list

    c, Certificate

    d, Foundation diagram

    e, Transducer operation instruction , hydraulic pump operation instruction.


    Technical Parameters:


    ModelHZL-1200HZL-1500HZL-1800
    Web Height (mm)200-1200200-1500200-1800
    Web Thickness (mm)6-32
    Web Length (mm)4000-15000
    Flange Plate Width (mm)200-800
    Flange Plate Thickness (mm)6-40
    Assembling-standing Speed (mm/min)500-6000
    Input Roller Way (mm)2600×3
    Output Roller Way (mm)2600×3
    Draw Bar Box2 pieces
    Centering TypeUse hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding
    Speed ControlAC frequency converter (stepless speed)
    Input Capacity9.5 KW (not including welding power supply)
    Welding SystemKN-350 Gas-shielded welding machine,2 sets

    H Beam Line Show:



    Finished Products Show:
