Gantry Type Light Pole Automatic Welding Machine for High Mast

This machine is specially designed for light pole automatic seam welding.

Welding method: Submerged Arc Welding/MIG Welding.

LIGHT POLE WELDING MACHINE is suitable for one shell type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.

The machine includes the following items:

Machine body

Submerged Arc Welding system, including welding wire feeding system

The flux recovering system

Structures:

This set of machine is mainly designed for the pole diameter above 500mm, normally 2 shells combined pole.

The machine includes the following items:

• Travel driving motor: YDS100-4 low speed motor 1 set
• Welding lifting choose SCWS-08-1.1W deceleration machine 1 set
• Flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m
• Submerged arc welding machine 1 set. Lincoln DC-1000
• Power cord 3×16m㎡, 60m
• Arc guidance 1 sets(including welding gun)
• Able movement pulley
• Electrical apparatus box 1 set control box 1 set

Technical Parameters:

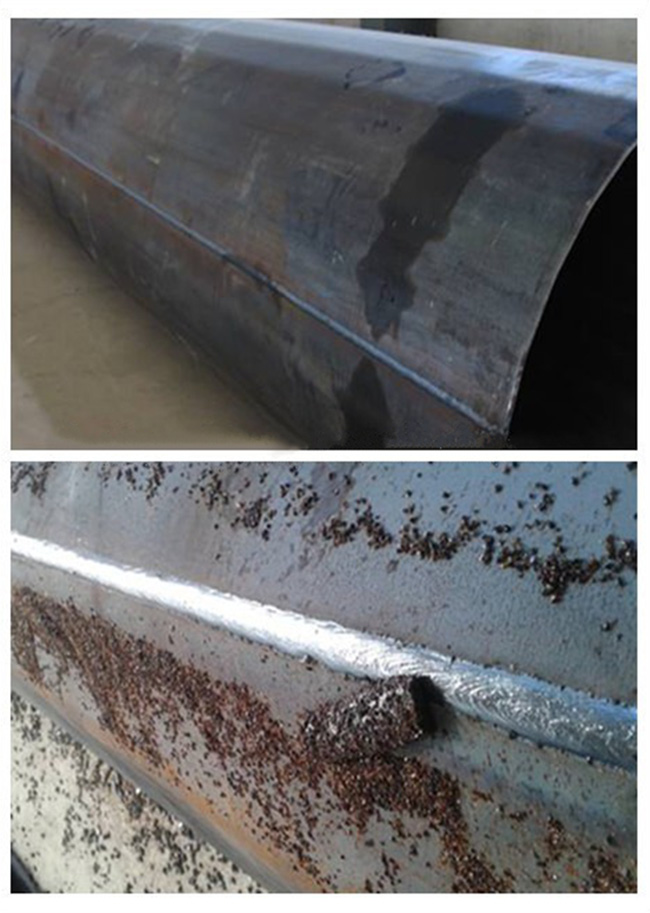

Woripiece Photos:

After-Sale Service:

♥ Warranty: one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material

Metalwork Machinery (Wuxi) Co., LTd., was established in 2006, specializing in cutting and welding automation manufacture, sales, and services with more than 10 years experience.

Our products ranges: CNC flame and plasma cutting machine, CNC fiber laser cutting machine, arc welding machine, automatic resistance welding machine, automatic seam welding machine, H beam and box beam production line, robotics welding and cutting stations, etc.  We also can produce the customized machine according to customer's workpiece.

Moreover, we are specialized in "whole solution" of production lines for our customers, we not only supply you the individual equipment, but also delivery a solution for your project. This will bring you more values from us.

With regard to the welding equipment industry, advanced technical well-know in design and production activities and long term experience, we provide important technology and innovations for tank, pressure vessel, boiler,ship building, nuclear power, electric power station, manufacturing processes. We not only sell the equipment, but also delivery value to customers.

Service is our specialty, after long time cooperation, you will satisfy more with us.

If you have any queries, please do not hesitate to contact us by phone or E-mail. We will revert to your questions, within 24 hours after your requests.
