    Pneumatic Spot Projection Resistance Welding Machine For Nut Screw Cap Bolt

    Ask Lasest Price
    Brand Name : Metalwork
    Model Number : DT-50
    Certification : ISO, CE, CCC
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

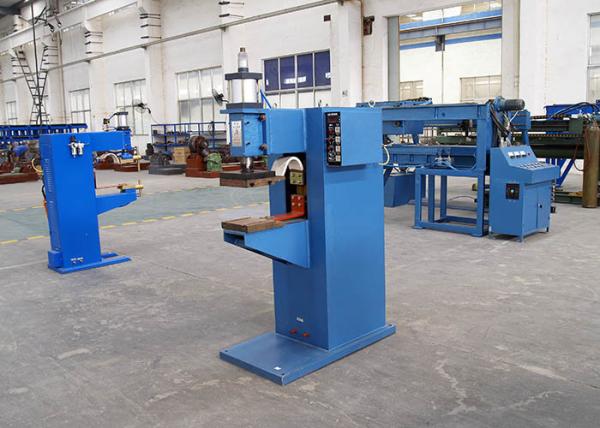

    Pneumatic Spot Projection Resistance Welding Machine For Nut Screw Cap Bolt


    DT Series Resistance Projection Spot Welding Machine


    Welding materials: Mild steel, stainless steel, copper, aluminum etc.

    General welding thickness (2 pieces):0.5-10mm

    About welding electrode: we make the customized electrode according to your work piece.


    Applications:


    1. Shock Absorber Components
    2. Projection Nut/bolt Welding
    3. Oil Port To Cylinder Tube Welding
    4. Oil Filters
    5. Window Regulators/Seat Adjusters
    6. Cap Nuts
    7. Tie Rod Ends
    8. Stainless Steel Impellers
    9. Sheet Metal Fan Covers
    10. Brake Shoes
    11. Auto Electrical Components
    12. Switchgear Components
    13. Stainless Steel Kitchenware
    14. Whitegoods Components
    15. Relays
    16. Carbon Brush Assembly
    17. Aeroengine And Aerospace Components
    18. Sheet Metal Furniture Parts
    19. Dissimilar Metal Parts
    20. Silver Contact Welding

    Technical Parameters:


    ModelDT-50DT-75DT-100DT-150
    Rated Capacity (KVA)5075100150
    Input VoltageSingle Phase 380V 50Hz
    Input Current (A)131197263395
    Output No-load Voltage (V)5.35.77.37.8
    Rated Duty Cycle50%
    Max. Welding Thickness (low carbon steel) (mm)1+1-4.5+4.51+1-5+51.5+1.5-6+61.5+1.5-7+7
    Welding Speed0.8-3.2m/min
    Electrode Stroke350

    Features:


    1. Quick energy release for welding highly conductive metals such as aluminium,copper,and so on;


    2. Small heat affected weld zones,beautiful welding quality,mainly used for welding various stainless steel product;


    3. Adopted Japanese original capacitor,repeatable energy release independent of line voltage fluctuations,save more than 90% energy,widely used for all kinds of industrial projection welding,especially for multi-spot projection welding.Such as auto filter,the microwave cabinet,Computer Case,Automobile air-conditioning electromagnetic clutch,and so on.


    4. Full digital microcomputer control system,three grades discharge design (Pre-pressing,welding and tempering),equipping functions of Constant Voltage,Constant Current,Constant Heating,Slowly Increasing,Slowly Decreasing,save multi-group Schedule Number,etc.easily meet customers’ high requirements of welding quality.


    5. Integrated high-strength frame Structure,more impact resistant and anti-shock ability under high pressure operation,to achieve more accuracy of welding position,both spot welding and projection welding,reach the largest welding performance.


    6. All copper water-cooling transformer,Multi-channel forced water cooling system to ensure the reliability of the machine running for long time;


    Welding Samples:
