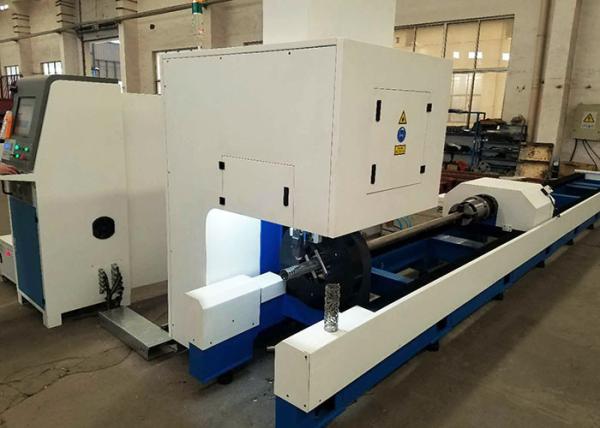

Automatic Stainless Steel Metal Fiber Laser Pipe Tube Cutting
Machine
Product Introduction:
As a China professional manufacturer of Fiber Laser Pipe Tube
Cutting Machine with rich experiences, we could supply you with the
best quality, affordable price and perfect after-sales service.
FL series Fiber Laser Pipe Tube Cutting Machine specially used for
cutting 0.5-14mm carbon steel, 0.5-5mm stainless steel, galvanized
steel, electrolytic zinc-coated steel sheet, silicon steel,
0.5-3mmaluminum, 0.5-2mm brass and red copper and other kinds of
thin metal sheets (The thickness and materials depend on different
fiber laser source).
Advantages:
1). Great Performance: with excellent path quality, Identical cutting quality on any
cutting point is realized through fiber transmission.
2). High Cutting Speed: The rapid cutting speed is two times higher than that of CO2 laser
machine. Its use-cost is very low.
3). Low Cost: Save energy and Environmentally friendly because of
low gas Consumption: Laser cutting does not make any gas because of the specific
cutting technology on steel plate. power consumption is reduced by
20%-30% compared with CO2 laser.
4). High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting
machine have 3 times photoelectric conversion efficiency.
5). Stable Running: adopt top world import fiber laser generator, stable performance,
key parts can reach 100,000 hours; Machine bed treated by 650℃ heat
treatment ensure its stability and smoothness.
6). Maintenance-free: The machine is maintenance-free, there is almost no any parts need
to change after long term use.
7). Easy operations: fiber line transmission, no adjustment of optical path.
Features:
1. The whole structure is welded, stable performance, to ensure the
stable operation.
2. With 650 degree high temperature heat treatment working bed and
a large milling machine high precision machining to ensure the
stability and smoothness of the working bed.
3. Operation system, easy control system, easy to learn and
operating.
4. High quality, high efficiency fiber laser generator, low
processing cost, saving help energy conservation and environmental
protection.
5. Automatic chuck the front and bottom, easy to feeding, designed
for saving material.
6. Equipped with servo system from Japan, gear rack movement structure using, to ensure the high
speed, high precision, high reliability.
7. New beautiful designed, fully enclosed protective cover.
>>Application Material:
Fiber Laser Pipe / Tube Cutting Equipment is mainly used for
cutting carbon steel, Stainless Steel, Mild Steel Plate, Alloy
Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron,
Galvanized Sheet, Pickling Board, Aluminum Zinc plate, Aluminum
Alloy, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate,
Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate,
Tubes and Pipes, etc.
>>Applicable Industry:
Fiber Laser Cutting Machines are widely used in manufacturing
Sports Equipment, Aviation & Spaceflight parts, Ships, Automobile,
Elevator, Subway parts, Electronics, Electrical Appliances,
Precision Components, Machinery, Household appliances, Adornment,
Advertising, etc. various high precision components processing
industries.
Technical Parameters:
| Laser Power | 500W | 700W | 1000W |
| Laser Wave | 1070nm | 1070nm | 1070nm |
| Pipe Cutting Length | ≤3000mm | ≤3000mm | ≤3000mm |
| Round Pipe Diameter | 20-200mm | 20-200mm | 20-200mm |
| Square Tube Side | less than 160mm | less than 160mm | less than 160mm |
| Pipe Thickness | 6mm | 8mm | 10mm |
| Laser Line Width | 0.15mm | 0.15mm | 0.15mm |
| Location Precision | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Re-location Precision | ±0.02mm | ±0.02mm | ±0.02mm |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Cooling | Water cooling | Water cooling | Water cooling |
Cutting Samples:
Cutting Parameters:
