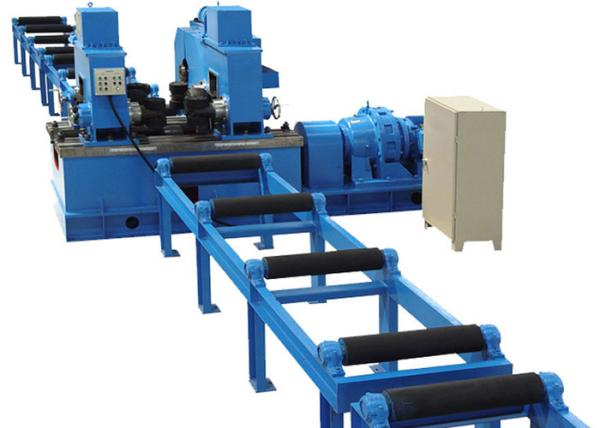

HJZ Series H Beam Strighghtening Machine (Mechnical Type)
1. The mainframe is integral frame structure with stress relief, it
is processed and shaped in one step by CNC floor type boring and
milling machine, with the advantages of compact structure, strong
strength and enough rigidity.
2. The main cylinder adopts high quality sealing ring with good
sealing performance, which can ensure long service time. There’s
fine filter equipped on the pump station which can ensure
electromagnetic valve is more reliable for long-term use
3. There’s dial for all the adjusting motion which can ensure
convenience and accuracy.
4. The straightening roller adopts shaft box structure, so it have
big loading capacity. There have hydraulic cylinder in shaft box,
it can adjust the distance of two upper straightening rollers,
which is stable and reliable.
Product Details
1) Cylindrical gear reducer using the carburizing and
quenching,gear grinding carrying capacity increased by more than
four times,small volume,light weight,low noise,efficient,high
reliability.
2) The roller using 40Cr and 35CrMo material,By the whole forging,A
one-time processing molding,Surface high frequency quenching,
quenching hardness is HRC50-55,To ensure that its long-term use
will not produce cracks and other defects.
3) Electric control system is separated with main machine,easy to
operate.
4) Hydraulic pump station is as a peripheral independent system,
which adopts the Ningbo Chuangli brand.
Technical Parameters:
| Model | HJZ-20 | HJZ-40 |
| Flange Width (mm) | 150-600 | 200-800 |
| Flange Thickness(mm) | ≤20mm | ≤40mm |
| Min Web Height ( mm) | 160mm | 350mm |
| Material | Q235-A | Q235-A |
| Straightening Speed (m/min) | 5.7m/min | 18m/min |
| Overall Power | 9.0kw | 14kw(13.2kw) |
| Straightening Type | Mechnical Type |
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D
personnel, professional after-sales team, and around 200 workers
producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit
customer's needs and specifications?
--- Yes, we can custom-made the machine according to your
requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main
components are from famous brands. We have strict quality control
system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts
broken, we will send a new one to customer free of charge, and we
will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and
technology power. And you will see different sample machine at our
workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement
information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment
solution and price quickly.
