Highly Flexible Copper Bar Connectors For Electrical Transformers Accessories

Specifications

Electrical transformers parts

Improve conductivity

Adjust the installation error of equipment

Convenient to test and service

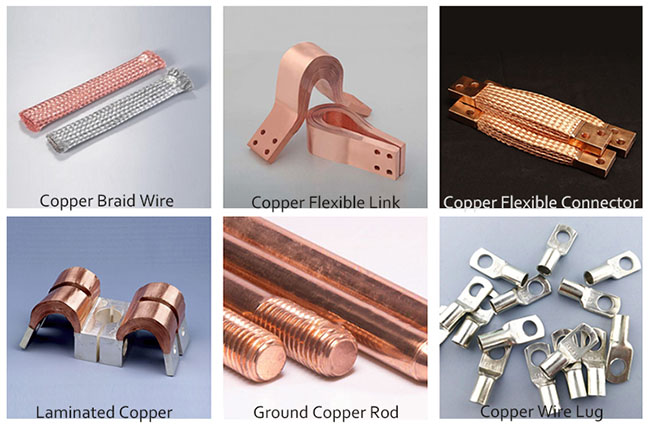

Flexible connectors

A wide range of flexible components for high current transmission.

Our different production processes enable the manufacturing of highly flexible braids, ropes and ready assembled cables as well as welded connectors. All articles are manufactured in coordination with you specified applications. From the smallest ground or earthing tapes up to high current cables with 6000mm²conductor cross section almost all conceivable applications are covered. Whether in air-cooled or water-cooled designs, we can offer you the right components and solutions.

Braided copper, stranded copper soft connectors

Adopt bare copper wire or tinned braided copper wire (twisted wire), which is formed by cold pressing. The contact surface can be tinned or silver plated according to customers’ requirements.

Single wire diameter

0.20mm: Standard products.

0. 10mm: Can be processed according to customers’ requirements.

Technical Parameters

■ See the table below.

■ Width, length, cross-sectional area and drilling are not included in the table below and can be processed according to customer requirements.

■ The allowable current capacity is for reference. This value is related to the installation and use conditions of the soft connectors.
