Automatic Ringlock Scaffold Welding Machine for 6 Pieces Rosettes

Product introduction:

HJSJ-6R, Welding machine for vertical standards, equipped with 12 sets welding torch for 6pcs rosettes circular seam welding. CO2 gas shield welding procedure. PLC controlled with touch panel, easy to operate. The machine also can weld Kwistage and cuplock by using 6pcs welding torch.

Main Technical Parameters:

Applications:

This machine is designed for automatically circumferential seam welding for scaffolding pole, fastener (double-sided) and the casing. The equipment uses advanced programmable control technology to complete one-time welding of the workpiece, improve production efficiency, reduce labor intensity, and achieve the customer's requirements for welding effect.

Features:

• The equipment is suitable for the welding scaffolding with 4-6 pieces rosettes.

• The pneumatic clamping device can realize automatic clamping and improve efficiency.

• The whole frame is made of steel structure, welded by steel, and the structure is stable and reliable.

• The integrated electric control cabinet is beautiful and easy to operate. Each welder can be individually controlled and is suitable for a wide range of pole welding.

• Using advanced programmable control technology, AC motor drive, high precision of motion, precise control to each weld.

• Wire feeder, power supply integrated control. Wire feeder and power supply will be placed on the work frame, it is easy to adjust the power supply parameters, saving space on site and improving the overall appearance.

• The convenient welding torch cross adjustment mechanism makes the cleaning and adjustment of the welding torch more convenient.

• The equipment has automatic seam welding alarm system. When welding, the system automatically detects the welding state. When it encounters unwelded, broken welding or leak welding, the equipment will emit an audible and visual alarm.

• Using special carbon brush to conduct electricity, protect the machine from arcing, ensure the quality of the weld and improve the service life of the equipment.

• The equipment is equipped with an automatic protective door to block the arc and splash generated during welding. The protective door has a reserved port and can be connected to a smoking and dust removal device.

• All parts of the equipment are equipped with protective devices to ensure that the parts are not affected by welding spatter during welding, prolonging the service life and facilitating the cleaning of the slag.

• Equipment with centralized electrical access box and gas supply system, making equipment layout, routing, and use more convenient.

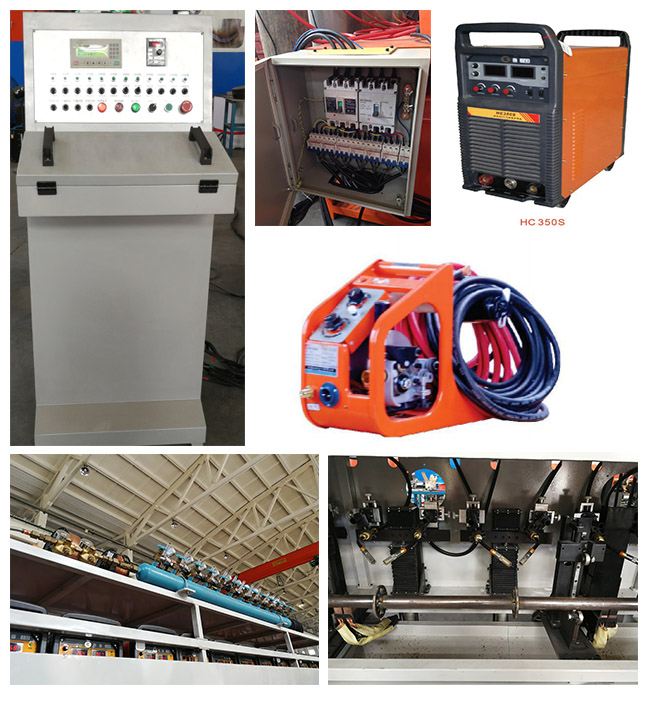

Machine Details:

Welding Samples:
