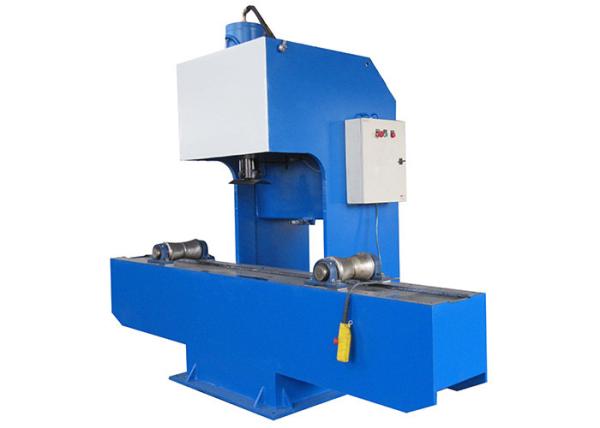

    High Mast Straightening Machine Light Pole Production Line To Straight Bent Light Pole 400mm

    Ask Lasest Price
    Brand Name : Metalwork
    Model Number : JZ-63-4000
    Certification : CE, ISO, CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    High Mast Straightening Machine Light Pole Production Line To Straight Bent Light Pole 400mm


    Light Pole / High Mast Straightening Machine to Straight Bent Light Pole 400mm


    Application:

    It is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.


    TECHNICAL PARAMETER
    NameUnitValue
    Max. Pole diameterMm400
    Min. Pole diameterMm58
    Nominal working pressureKN630
    Length of worktableMm3000
    Distance between HousingMm840
    Throat DepthMm420
    StrokeMm400
    Max. Open HeightMm510
    Main Motor (for Pump)Rotate Speedr/min1440
    PowerKW7.5
    Overall DimensionsLengthmm3000
    Widthmm1260
    Heightmm2230
    WeightKg2800
    Dimensionsmm3000X1260X2230
