STEEL PLATE SLITTING MACHINE, MODEL: ET 5x1250 (For light pole edge and taper steel plate cutting)

The light pole plate slitting machine is base on the rolling shearing principle.

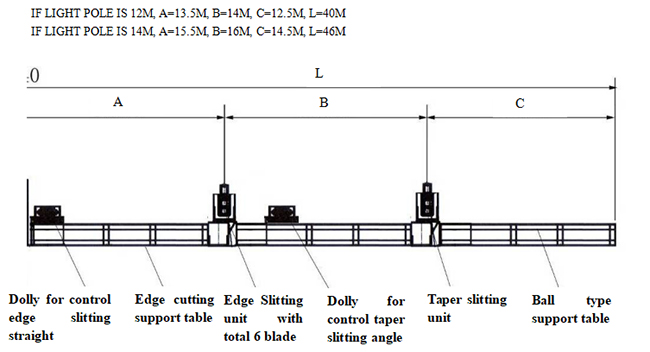

There are two precess step on the machine:

First step is to cut the scrap edge of the hot rolled steel to get the exact width and good edge which is good for light pole seam welding process.

There is a dolly in the front of the slitting unit. it is for control the straight cutting.

Second step is to cutting the light pole taper steel and get one side big one side small width steel plate.

There is a dolly in the front of the slitting unit. it is for control the taper cutting degree. Through changing the base position on dolly to change the taper degree.

Technical Parameter and Composed Devices:

Supply Scope:
