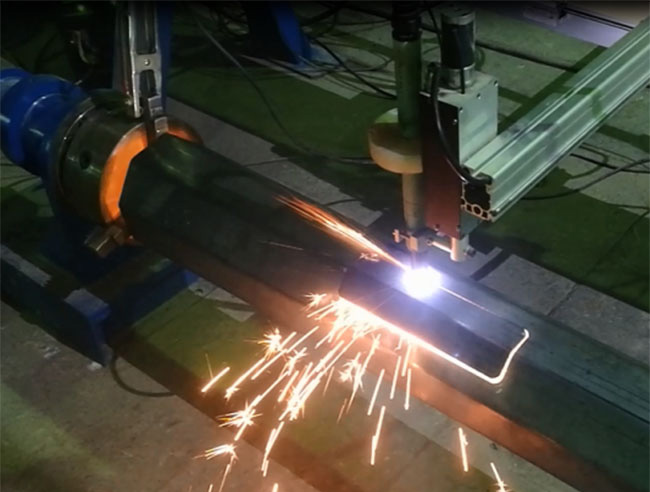

High Quality CNC Portable Metal Round Tubes and Square Pipes Plasma
Cutting Machine
Technical Specification:
| Model: | CNC1-1530P |
| Power source: | AC 220±10%VAC 50/60Hz |
| Cutting mode (Flame): | O2/C3H8 or C2H2 |
Effective cutting range (mm): | Not suitable for metal sheets |
Cutting thickness (Plasma): | According to plasma power source |
Cutting thickness(Flame): | 6-160 mm (O2/C3H8 or C2H2) |
Main parts of machine:
1.Flame cutting torch High pressure trachea:
1) O.D.of the tube:30 mm
2) Balanced pressure structure design.
3) It adopts silver solder, which can effectively avoid leakage.
4) It is made of high quality forging brass.
2.Insultion board:
Used to Protect the Control system and Circuit.
3.START brand Driver:
1) Extra-low motor noise offers excellent quietness.
2) Anti-Resonance, provides optimum torque and nulls mid-range
instability.
3) Self-test and Auto-configuration technology, offers optimum
responses with different motors.
4.Cutting torch:
1) Flame cutting torch is fixed, plasma cutting torch is mobile
type.
2) Flame torch and plasma torch could be changed very easily.
5.Cutting torch and lifting station
Use ball screw to driving, more precision, and more steady.
6.JIUSHENG brand power supply:
1) Protectiions: Short circuit/Overload/Over voltage/ Over
temperature
2) Forced air cooling by built-in DC fan
3) Built-in cooling
4) Fan ON-OFF control
5) Built-in constant current limiting circuit
6) 100% full load burn-in test
Advantages:
1.Light weight, small size, easy to move, and set up.
2.Durable construction, strong cross beam, more rigid.
3.Better performance, high precision.
4.CNC control, supply Operation language, easy to operate.
5.Electric torch lifting, Arc voltage auto torch height control for
plasma cutting.
6.Support both of flame cutting and plasma cutting, equipped with
multitudinous plasma source.
7.Widely applied in maintain, construction, steel structure,
shipbuilding industries.
8.The machine is equipped with FastCAM programming software, the
software is easy to learn and operate.
9. Machine Color and Cutting area can be customized.
Operation steps:
①Drawing Pictures (CAD or other drawing software) ⇒ ②Nesting
Software: FastCAM ⇒ ③Transfer Files ⇒ ④Cutting
Package and Shipping:
This kind machine used to cut 0mm to 160mm metal sheets and
40--300mm metal tubes, the metal could be iron, stainless steel,
aluminum, copper, Titanium, tin and many other kinds metal. Widely
used in trucks, trailers, motorcycles, pressure vessls, general
machinery, steel structure, ship and so on.
