1500X6000mm Two Dimention Cnc Flame Cutting Machine For Metal Pipe
And Plate
Technical Specification:
| Effective Cutting Range: | 1500X6000mm |
| Max. Return Speed: | 3000mm/min |
| Flame Cutting Thickness: | 6~150mm |
| Plasma Cutting Thickness: | Depend on Plasma |
| Power Supply Voltage: | 220V |
| Frequency: | 50Hz |
| Rated Power: | 0.24KW |
| Oxy Max Pressure: | 0.98Mpa |
| Gas Max Pressure: | 0.14Mpa |
Product description:
Plasma cutting machines are machines that process metal materials
using plasma cutting technology.
A process for melting (and evaporating) the metal at the notch of
the workpiece using the heat of the high temperature plasma arc and
removing the molten metal by the momentum of the high speed plasma
to form the notch.
Product advantages:
1) The frame adopts all-welded structure, strong and reasonable,
easy to operate and durable.
2) The cutting speed is fast, the precision is high, the cutting
mouth is small, neat, there is no dregs phenomenon.
3) High CNC system configuration, automatic arc ignition, stable
performance.
4) Wide cutting area, can cut all metal plates.
5) Can cut pipe straight line.
Product details:
1. Plasma torch height controller:
It has simple and convenient parameter which can be set, change
operation parameter flexibly, suit complex working conditions, THC
can automatic promote torch height, and height which we promote can
set casually.
2. Control system panel:
High configuration Fangling CNC control system with
Automaticcapaci-tance-height controller and automatic arc-height
controller. The control system uses the U-disk exchange processing
document easy to operate.
3. Longitudinal guide:
The transmisson part adopts the precision gear rack. The groove
design avoids affecting the cutting accuracy.
4. Plasma torch:
Accurate cutting, high precision. Increase the upper and lower
limits to avoid operating damage to the motor.
5. Power source:
Hypertherm or Huayuan plasma power.
Product application:

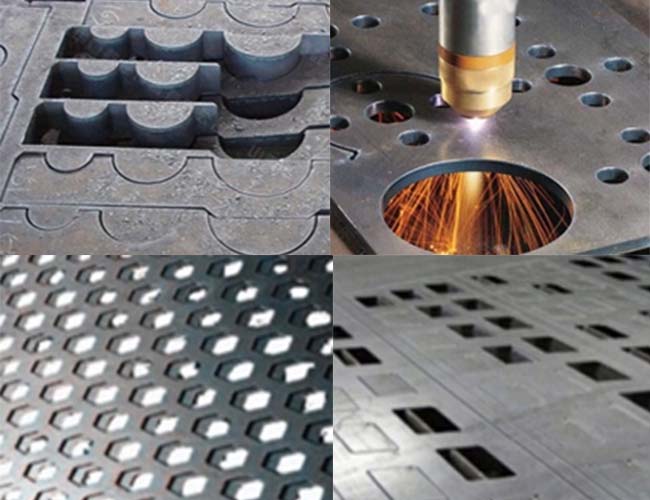

1) Advertising industry:
Advertising signs, logo making, decorative products, production of
advertising and a variety of metal materials.
2) Mold industry:
Engraving metal molds made of copper, aluminum, iron and so on.
3) Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring
steel, copper plate, aluminium plate, gold, silver, Titanium and
other metal plate and tube.
FAQ:
1. Where is your company located? How can I visit there?
Our company is located in Wuxi, JIangsu. We will meet you at
airport or train station. Warmly welcome to visit us!
2. What's the quality of your products?
We are very focused on the quality of the products, All spare parts
of this machine come with best brand and best quality, after
completing the installation we will test the machine for 48
hours.Our factory has gained CE, ISO9001 authentication.
3. What shall we do if don't know how to operate your machine after
bought from you?
We have detailed installation and operating instructions attached,
also comes with video, it is very simple. We have telephone and
email support at 24 hours a day.
4. What to do if the machine has a problem?
12 hours timely response of mail and phone calls.In 12 months, if
parts fail, we offer free replacement (except customer reasons).
