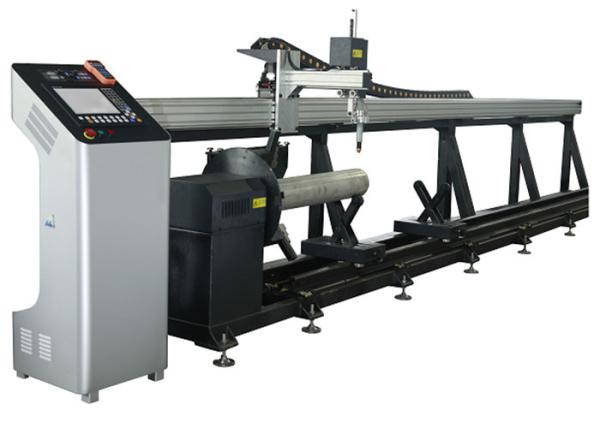

Tube Master 2 Axis CNC Plasma Mild Steel Pipe Cutting Machine with
Panasonic Motor
Product details:
1) It is used gantry style design, which is parallel to the pipe.
The tractor with lifting tool installed on the gantry beam. The
pipe fix by chuck jaw, and with movable and adjustable pipe
supporters which on the rails and under the pipe.
2) When cutting, CNC control system will control the tractor move
and pipe rotate, to cut the pipe. Whole machine work stability and
can be long term used. Easy operation and high efficiency.
3) Fit work for 50-500mm diameter without bevel cutting pipes.
Machine Data:
Effective cutting diameter: | 50-500mm |
Effective cutting length: | 6000mm |
Maximum weight of pipe: | 1000kg |
Rated rotate speed: | 0-15 rpm |
Ovality of pipe: | ≤2% |
| Quantity of stents pipe: | 4 sets |
| Maximum bevel angle: | No bevel function |
| Bevel Accuracy: | No bevel function |
| Torch Lifting Distance(Z): | ≤210mm |
Working precision: | ±0.2 mm /m |
Lift and down adjustment: | Electric heighten and remote control
(PLASMA THC will control torch height when cutting) |
Cutting table: | Pipe cutting brace and fixture |
Safety settlement: | Emergency stop switch |
Input power: | Single phase AC220V + 3Phase AC 380V |

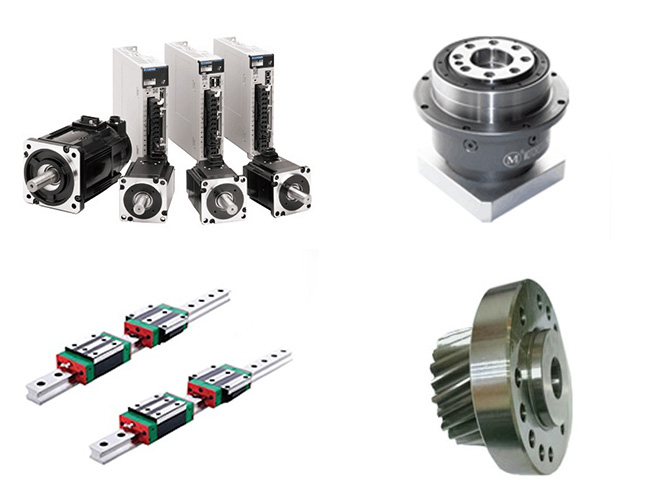

Basic components and specification:
Strong Beam with heat dissipation, with weld and after stress
relief processing. That make sure the beam is strong and hard to
distortion.
1) X axis rail way length: 7000mm
2) X axis driving system: TORCH LENGTH MOVING ACCORDING TO PIPE
DIRECTION (step motor with driver and gear box)
3) Y axis chuck diameter: φ50-500mm
4) Y axis driving system: PIPE ROTATING AXIS (Japan PANASONIC servo
750W digital servo motor with driver and gear box)
5) Z axis driving system: Lifting up and down axis
6) X and Y axis gas and cable moving: Heavy duty industrial cable
chain
7) X axis rail: 24KG/m High definition heavy duty railway
8) Control cabinet, electrical cabinet, High frequency cabinet:
With components of OMRON, SIEMENS, wire terminal connector
SCHNEIDER
Site condition requirement of the machine:
1. Voltage requirement:
1) 3×400v±10%/50Hz,220v±10%/50Hz
2) Three-phase voltage stability less than ±5%
3) Three-phase voltage unbalance less than 2.5%
4) Suggested using voltage-stabilized source.
Note: Grounding resistance ≤10.
2. Compress air pressure requirement (Plasma cutting):
1) Gas flew requirement: 0.9m3/min
2) Gas pressure: 8.3kg/cm2
3) Dew-point temperature not exceed 5 centigrade: oil
content≤0.003ppm solid particle≤0.01micron
4) Suggested using oil free air compressor, freezing dryer and
ultra filter (system cannot have rust components).
3. Cutting pipe must be smooth surface oval-shaped deviation less
than 5mm diameter. Reach ISO standard.
4. Working temperature: -10°C -45°C
Humidity: <90%, no condensation
Surroundings: Ventilation, no big shake

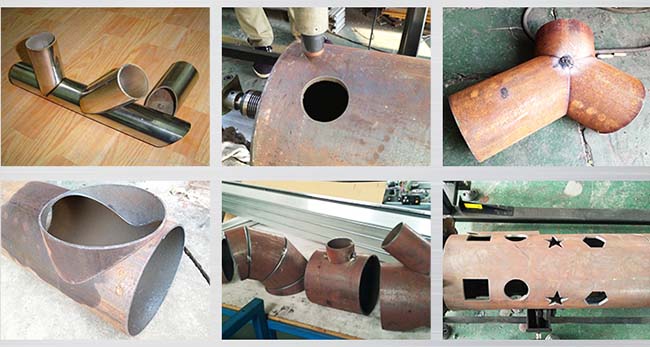

Cutting sample:
